Product introduction

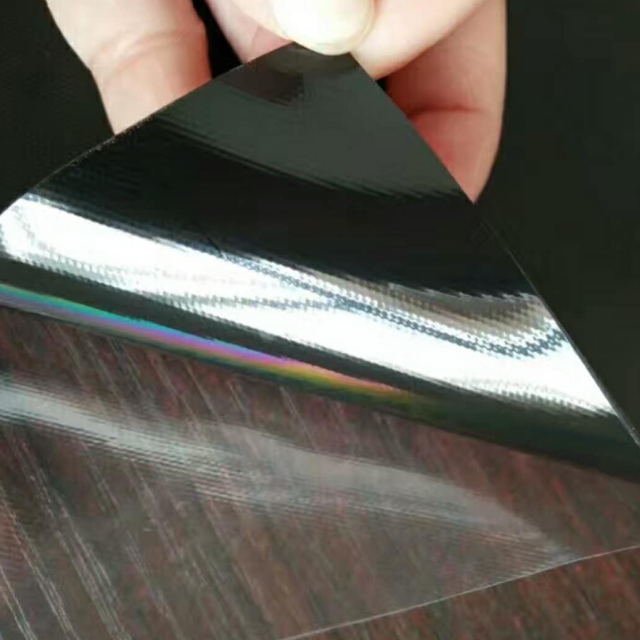

EPDM rubber waterproof membrane is made from ternary ethylene-propylene rubber.
Starring adopts the world-advanced equipment of cold feeding extrusion and continuous vulcanization technology. With the best performance among high polymer waterproof materials, EPDM is of exceptional elasticity and will not split or cracked under normal building movement.
Features
l Excellent weather-ability, durability and size stability
l Good adaptability to high and low temperature, UV resistant and anti-corrosion
l High tensile strength and good elongation, accommodating to structure movement
l Easy installation, solid joint, and no environmental pollution
l Good rooting penetration resistance
l Service life up to 50 years
Applications
l Roofs, Basements, Tunnels
l Industrial and civil building waterproofing
l Geosynthetic liner for fish ponds, swimming pools, channels, irrigation system.
l Especially suitable for projects with high requirement in durability, anti-corrosion and deformation
Technical Standard (GB standard)
|
NO. |
Item |
Unit |
Technical requirement |
|
|
1 |
Tolerance on size |
Thickness |
% |
±10 |
|
Width |
% |
±1 |
||
|
length |
% |
Does not allow negative |
||
|
2 |
Fracture tensile strength (normal temperature ) |
Mpa |
≥7.5 |
|
|
Fracture tensile strength(60 ℃) |
Mpa |
≥2.3 |
||
|
3 |
Breaking elongation,(normal temperature ) |
% |
≥450 |
|
|
Breaking elongation,(-20 ℃) |
% |
≥200 |
||
|
4 |
Tearing resistance |
KN/m |
≥25 |
|
|
5 |
Impermeability |
* |
0.3Mpa impermeable |
|
|
6 |
Bending at low temperature |
°C |
≤-40 |
|
|
7 |
Elongation and contraction volume at heating |
Elongation |
mm |
≤2 |
|
contraction |
mm |
≤4 |
||
|
8 |
Hot air aging 80°CX168h |
Fracture strength retention |
% |
≥80 |
|
Rate of elongation at break |
% |
≥70 |
||
|
9 |
Alkaline (saturated Ca(OH)2 solution normal Temperature x2 168h ) |
Fracture strength retention |
% |
≥80 |
|
Rate of elongation at break |
% |
≥80 |
||
|
10 |
Ozone aging (40 degree by 168 hours ) |
Elongation 40% , 500x10-2 |
* |
No Crack |
|
11 |
Phytotron aging |
Fracture strength retention |
% |
≥80 |
|
Rate of elongation at break |
% |
≥70 |
||
